Introducing New Factor 55 Industrial Strength Rigging – Soft Shackle and Rope Retention Pulley
The Industrial Soft Shackle and XXL Rope Retention Pulley bring the popular truck winching rigging gear to the industrial market, built for heavier loads and higher working load limits.

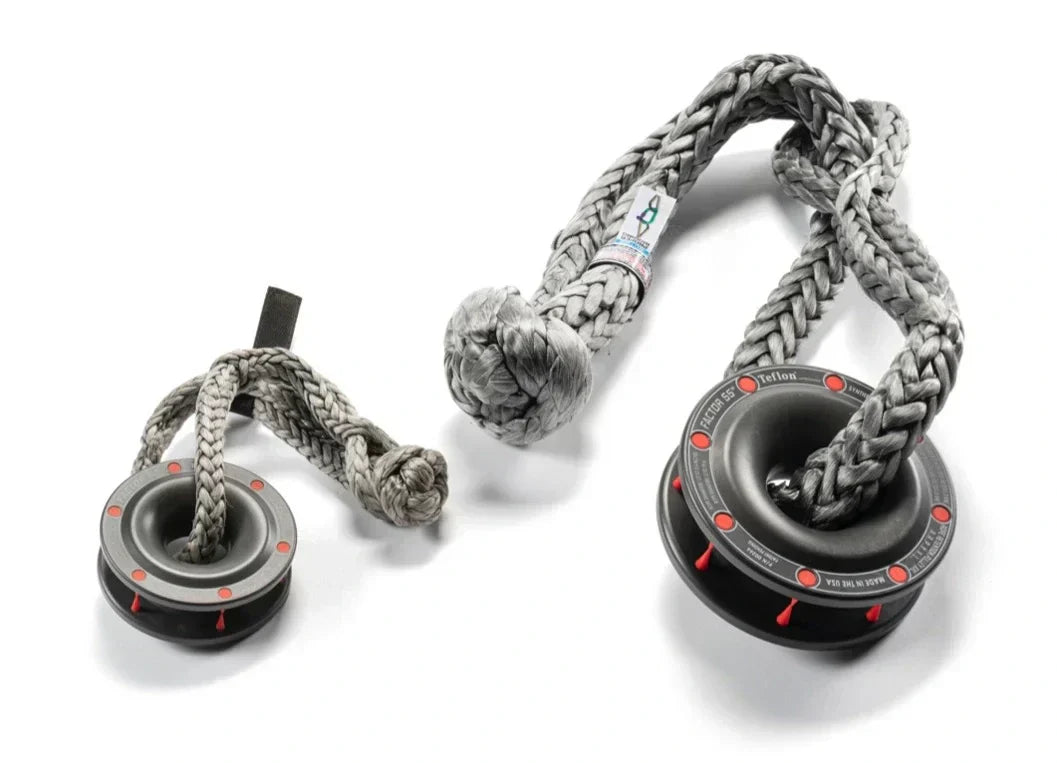

Truck RRP and soft shackle combo on left, in comparison to RRP XXL and Soft Shackle combo, on right.
RRP XXL - Extra-large friction pulley perfectly sized for industrial applications
The RRP XXL, Factor 55’s largest pulley ring, has a working load limit (WLL) of 56,000 lbs. at a 3:1 safety factor, and 34,000 lbs. at a 5:1 safety factor—ideal for industrial applications requiring the heaviest pulls. Made from billet machined 6000-series aluminum makes the RRP XXL weigh just 4.25 lbs.—a fraction of what a traditional industrial snatch block weighs. For Synthetic Rope Diameters 1/2 to 3/4 in (12 - 19 mm).
A lightweight alternative to traditional heavy snatch blocks/pulley, the RRP XXL can be used to increase pulling power or redirect the winch line. During momentary slack, patented rope retention rubber fingers prevent the synthetic winch rope from escaping the pulley groove stopping premature rope failure.
The oversized hole radius provides a smooth rubbing surface and keeps the soft shackle’s legs from rubbing on the edges of the RRP XXL. The critical friction surface has also been Teflon™ treated to increase slickness and heat dissipation.
Specifications and Features
• Working Load Limit (WLL) - 56,000 lbs at 3:1 Safety Factor
• Working Load Limit (WLL) - 34,000 lbs at 5:1 Safety Factor
• Billet Machined 6000 Series Aluminum
• MIL-A-8625 F Hard Anodized Surface
• TEFLON treated critical friction surface
• Weight: 68 ounces (1928 grams)
• Engineered, Tested, and Made in the USA
• CE / UKCA Compliant
• To be used with Industrial Standard Duty Soft Shackle P/N 00126
Industrial Standard Duty Soft Shackle
Our Industrial Standard Duty Soft Shackle has a larger diameter to handle higher loads, and is designed to be used as a lightweight replacement for common steel screw pin shackles. It is constructed of UHMWPE 12 Strand Rope.
Specifications and Features
• 7/8" Diameter, 24" Length
• Minimum Breaking Strength (MBS): 170,000 lbs (77.13t - Metric Tons)
• Working Load Limit (WLL): 34,000 lbs (15.42t - Metric Tons)
• UHMWPE 12 Strand Rope, similar to synthetic winch line
• Weight: 96 oz
• Unique product tags communicate material, proper load limits, and individual serial numbers for material lot traceability
• Engineered, Tested, and Made in the USA
Our Industrial Standard Duty Soft Shackle is Made in the USA under the uncompromised Factor 55 quality standards. Like all Factor 55 rigging products, these shackles have been lab and field-tested to ensure consistent repeatable minimum breaking strength values.
